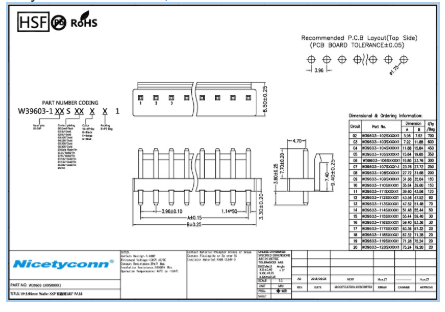

3.96 mm Pitch 180 Degree Straight Type Through Hole Wafer |
|
Specification: |
|
Current Rating: 5.0AMP |
|
Withstand Voltage: 1000V AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 1000MΩ Min |
|
Operation Temperature: -25oC to +85oC |
|
Insulation Material: PA66(UL94V-0) |
|
Contact Material: Phosphor bronze or brass |
|
Contact Plating: Au or Sn over Ni |
